商品型錄

Name: SOCKET 1/2
Brand: BAHCO
SKU: SB7800DZ-1.3/16

正在載入商品資料…

SB7800DZ-1.3/16

1/2" Square Drive Socket with 1-3/16" Bi-Hex Profile Retail Pack

SOCKET 1/2

BAHCO

品牌: BAHCO
料號: SB7800DZ-1.3/16
主題分類: 套筒與棘輪
Size: 1.3/16 in
Length L: 47 mm
Socket width: 40.4 mm
Female square drive width: 29 mm
Depth ball-bearing: 18.5 mm
Weight, g: 240 g

原廠資料與完整規格 ↓

產品特色PRODUCT DETAILS · 原廠資料

Knurled shank for finger turning of free running fasteners
Not suitable for machine operation or power tools
Highly polished finish
High-performance alloy steel
Less wear of the fastener thanks to Dynamic-Drive™ profile
Maximum load distribution and torque from the additional flank area
SB: retail packed on a plastic info card
Standards: ISO 2725/1174 and DIN 3124/3120

尺寸示意圖DIMENSIONS · 原廠線稿

型號	Size	Length L	Socket width	Female square drive width	Depth ball-bearing	Weight, g
SB7800DZ-1.3/16	1.3/16 in	47 mm	40.4 mm	29 mm	18.5 mm	240 g

詳細規格SPECIFICATIONS

規格項目	規格值
商品編號	SB7800DZ-1.3/16
商品名稱	SOCKET 1/2
品牌	BAHCO
主題分類	套筒與棘輪
交期	請洽詢，由客服依採購需求確認
零售價（含稅）	請洽詢

同系列規格比較VARIANTS · 原廠型錄（共 30 款）

型號	Size	Length L	Socket width	Female square drive width	Depth ball-bearing	Weight, g	價格
7800DZ-1	1 in	42 mm	34.7 mm	27.5 mm	18.5 mm	139 g	價格請洽詢
7800DZ-1.1/16	1 1/16 in	44 mm	36.6 mm	29 mm	19.1 mm	170 g	價格請洽詢
7800DZ-1.1/2	1.1/2 in	48 mm	45.2 mm	43 mm	25.1 mm	290 g	價格請洽詢
7800DZ-1.1/4	1 1/4 in	47 mm	42.3 mm	30.5 mm	19.1 mm	185 g	價格請洽詢
7800DZ-1.1/8	1 1/8 in	46 mm	36 mm	29 mm	19.8 mm	190 g	價格請洽詢
7800DZ-1.3/16	1 3/16 in	44 mm	40.4 mm	35 mm	18.5 mm	230 g	價格請洽詢
7800DZ-1.3/8	1.3/8 in	48 mm	44.5 mm	40.2 mm	24.9 mm	280 g	價格請洽詢
7800DZ-1.5/16	1.5/16 in	48 mm	44.5 mm	40.2 mm	24.9 mm	280 g	價格請洽詢
7800DZ-1.7/16	1.7/16 in	48 mm	45 mm	41 mm	25 mm	285 g	價格請洽詢
7800DZ-1/2	1/2 in	38 mm	18.8 mm	22 mm	9.7 mm	60 g	價格請洽詢
7800DZ-11/32	11/32 in	38 mm	14.5 mm	22 mm	6.9 mm	40 g	價格請洽詢
7800DZ-13/32	13/32 in	38 mm	16.6 mm	22 mm	8.9 mm	45 g	價格請洽詢
7800DZ-19/32	19/32 in	38 mm	21.6 mm	22 mm	9.1 mm	90 g	價格請洽詢
7800DZ-25/32	25/32 in	38 mm	27.9 mm	24.5 mm	13.5 mm	85 g	價格請洽詢
7800DZ-3/4	3/4 in	38 mm	26.6 mm	24 mm	13.5 mm	80 g	價格請洽詢
7800DZ-3/8	3/8 in	38 mm	14.5 mm	22 mm	6.9 mm	41 g	價格請洽詢
7800DZ-5/16	5/16 in	38 mm	14.5 mm	22 mm	6.9 mm	40 g	價格請洽詢
7800DZ-5/8	5/8 in	38 mm	22.9 mm	22 mm	11.7 mm	65 g	價格請洽詢
7800DZ-7/16	7/16 in	38 mm	16.6 mm	22 mm	8.9 mm	46 g	價格請洽詢
7800DZ-7/8	7/8 in	39 mm	30.7 mm	25.5 mm	17.8 mm	99 g	價格請洽詢
7800DZ-9/16	9/16 in	38 mm	20.8 mm	22 mm	10.2 mm	53 g	價格請洽詢
SB7800DZ-1	1 in	42 mm	34.7 mm	27.5 mm	18.5 mm	130 g	價格請洽詢
SB7800DZ-1.1/16	1.1/16 in	44 mm	36.6 mm	29 mm	19.1 mm	142 g	價格請洽詢
SB7800DZ-1.1/4	1.1/4 in	47 mm	42.3 mm	30.5 mm	19.1 mm	185 g	價格請洽詢
SB7800DZ-1.1/8	1.1/8 in	46 mm	38.6 mm	29 mm	19.8 mm	190 g	價格請洽詢
SB7800DZ-1.3/16本商品	1.3/16 in	47 mm	40.4 mm	29 mm	18.5 mm	240 g	價格請洽詢
SB7800DZ-1.5/16	1 5/16 in	48 mm	40.2 mm	44.5 mm	24.9 mm	280 g	價格請洽詢
SB7800DZ-1/2	1/2 in	38 mm	18.8 mm	22 mm	9.7 mm	51 g	價格請洽詢
SB7800DZ-19/32	19/32 in	38 mm	21.6 mm	22 mm	9.1 mm	56 g	價格請洽詢
SB7800DZ-25/32	25/32 in	38 mm	27.9 mm	24.5 mm	13.5 mm	85 g	價格請洽詢

相關商品RELATED · 同主題：套筒與棘輪

填入所需數量後，一次加入詢價清單。交期與專案價格請洽詢。

商品型錄與採購數量
料號	品名	品牌	主題分類	價格	數量
A7402DZ-7/8	SOCKET LONG 3/8", AEROSPACE	BAHCO	套筒與棘輪	價格請洽詢	A7402DZ-7/8 數量
A7402DZ-7/16	SOCKET 3/8, AEROSPACE	BAHCO	套筒與棘輪	價格請洽詢	A7402DZ-7/16 數量
A7402DZ-5/16	SOCKET 3/8, AEROSPACE	BAHCO	套筒與棘輪	價格請洽詢	A7402DZ-5/16 數量

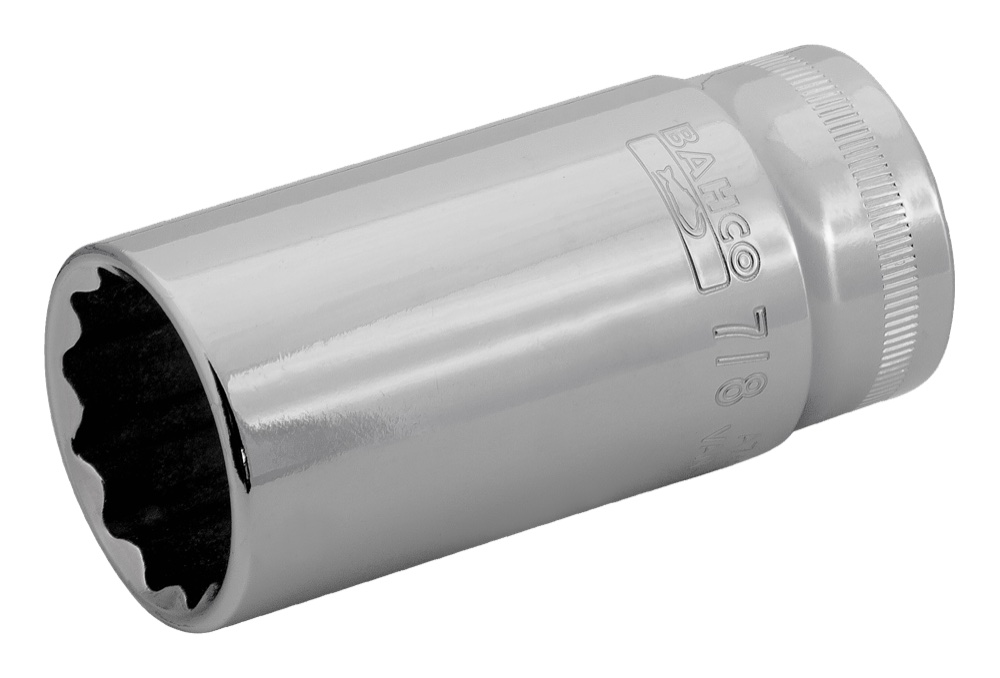

A7402DZ-5/8	SOCKET 3/8, AEROSPACE	BAHCO	套筒與棘輪	價格請洽詢	A7402DZ-5/8 數量
