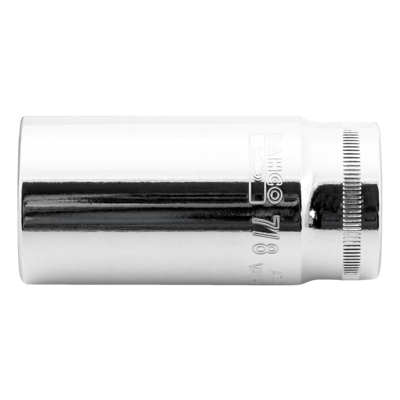

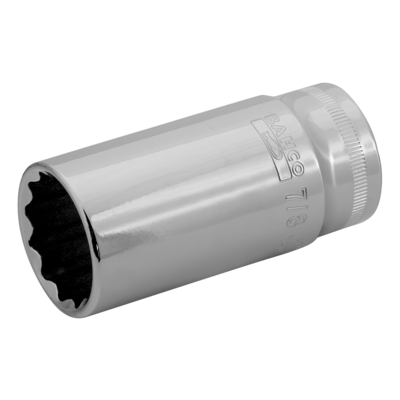

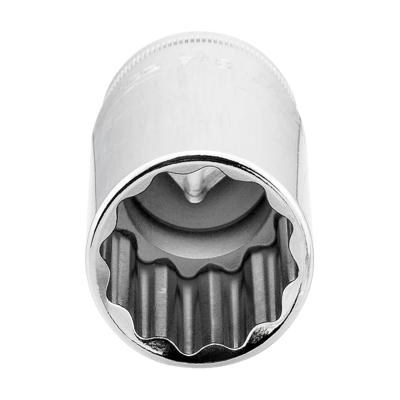

Name: SOCKET LONG 3/8", AEROSPACE
Brand: BAHCO
SKU: A7402DZ-19/32

正在載入商品資料…

A7402DZ-19/32

3/8" Square Drive Deep Socket with 19/32" Bi-Hex Profile

SOCKET LONG 3/8", AEROSPACE

BAHCO

品牌: BAHCO
料號: A7402DZ-19/32
主題分類: 套筒與棘輪
Size: 19/32 in
Length L: 60 mm
Socket width: 20.4 mm
Female square drive width: 18.5 mm
Depth ball-bearing: 10.7 mm
Weight, g: 76 g

原廠資料與完整規格 ↓

產品特色PRODUCT DETAILS · 原廠資料

Knurled shank for finger turning of free running fasteners
Applicable to nuts and bolts used in the aerospace industry
Not suitable for machine operation or power tools
Highly polished finish
High-performance alloy steel
Less wear of the fastener thanks to Dynamic-Drive™ profile
Maximum load distribution and torque from the additional flank area
Thin walled for better accessibility
Standards: ISO 2725-1/1174-1 and DIN 3120

尺寸示意圖DIMENSIONS · 原廠線稿

型號	Size	Length L	Socket width	Female square drive width	Depth ball-bearing	Weight, g
A7402DZ-19/32	19/32 in	60 mm	20.4 mm	18.5 mm	10.7 mm	76 g

詳細規格SPECIFICATIONS

規格項目	規格值
商品編號	A7402DZ-19/32
商品名稱	SOCKET LONG 3/8", AEROSPACE
品牌	BAHCO
主題分類	套筒與棘輪
交期	請洽詢，由客服依採購需求確認
零售價（含稅）	請洽詢

同系列規格比較VARIANTS · 原廠型錄（共 24 款）

型號	Size	Length L	Socket width	Female square drive width	Depth ball-bearing	Weight, g	價格
A7402DZ-1/2	1/2 in	60 mm	18 mm	17.3 mm	12.7 mm	60 g	價格請洽詢
A7402DZ-1/4	1/4 in	63 mm	10 mm	17.3 mm	5.8 mm	41 g	價格請洽詢
A7402DZ-11/16	11/16 in	62 mm	23.6 mm	20.5 mm	15.5 mm	110 g	價格請洽詢
A7402DZ-13/16	13/16 in	60 mm	28 mm	23.5 mm	17 mm	109 g	價格請洽詢
A7402DZ-19/32本商品	19/32 in	60 mm	20.4 mm	18.5 mm	10.7 mm	76 g	價格請洽詢
A7402DZ-3/4	3/4 in	60 mm	25.2 mm	22 mm	18.5 mm	120 g	價格請洽詢
A7402DZ-3/8	3/8 in	56 mm	14.3 mm	17.3 mm	10.2 mm	45 g	價格請洽詢
A7402DZ-5/16	5/16 in	64 mm	11.4 mm	17.3 mm	7.4 mm	40 g	價格請洽詢
A7402DZ-5/8	5/8 in	60 mm	21.1 mm	19 mm	15.5 mm	79 g	價格請洽詢
A7402DZ-7/16	7/16 in	63 mm	15.7 mm	17.3 mm	11.2 mm	60 g	價格請洽詢
A7402DZ-7/8	7/8 in	60 mm	29.1 mm	26 mm	18.3 mm	109 g	價格請洽詢
A7402DZ-9/16	9/16 in	63 mm	19.6 mm	18 mm	15.5 mm	80 g	價格請洽詢
SBA7402DZ-1/2	1/2 in	60 mm	18 mm	17.3 mm	12.7 mm	60 g	價格請洽詢
SBA7402DZ-1/4	1/4 in	56 mm	10 mm	17.3 mm	5.8 mm	41 g	價格請洽詢
SBA7402DZ-11/16	11/16 in	60 mm	23.6 mm	20.5 mm	15.5 mm	95 g	價格請洽詢
SBA7402DZ-13/16	13/16 in	60 mm	26.7 mm	23.5 mm	17 mm	109 g	價格請洽詢
SBA7402DZ-19/32	19/32 in	60 mm	20.4 mm	18.5 mm	10.7 mm	76 g	價格請洽詢
SBA7402DZ-3/4	3/4 in	60 mm	25.2 mm	22 mm	18.5 mm	100 g	價格請洽詢
SBA7402DZ-3/8	3/8 in	56 mm	14.3 mm	17.3 mm	10.2 mm	45 g	價格請洽詢
SBA7402DZ-5/16	5/16 in	56 mm	11.4 mm	17.3 mm	7.4 mm	42 g	價格請洽詢
SBA7402DZ-5/8	5/8 in	60 mm	21.1 mm	19 mm	15.5 mm	79 g	價格請洽詢
SBA7402DZ-7/16	7/16 in	56 mm	15.7 mm	17.3 mm	11.2 mm	45 g	價格請洽詢
SBA7402DZ-7/8	7/8 in	60 mm	29.1 mm	26 mm	18.3 mm	109 g	價格請洽詢
SBA7402DZ-9/16	9/16 in	60 mm	19.6 mm	18 mm	15.5 mm	69 g	價格請洽詢

相關商品RELATED · 同主題：套筒與棘輪

填入所需數量後，一次加入詢價清單。交期與專案價格請洽詢。

商品型錄與採購數量
料號	品名	品牌	主題分類	價格	數量

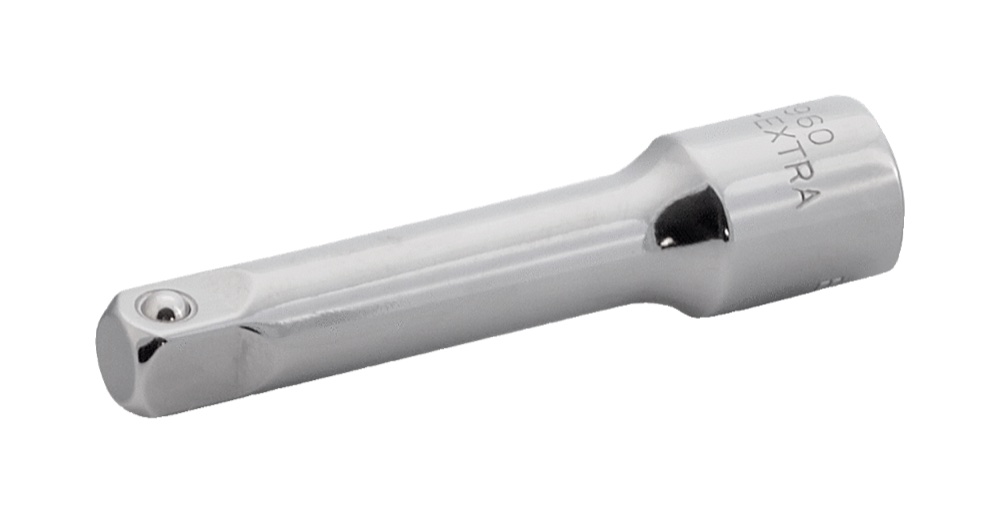

6962L	EXTENSION BAR 1/4" 355 MM	BAHCO	套筒與棘輪	價格請洽詢	6962L 數量
6960-W	WOBBLE EXTENSION 1/4"-50MM	BAHCO	套筒與棘輪	價格請洽詢	6960-W 數量
6960-14	1/4 EXTENSION BAR 355MM-14"	BAHCO	套筒與棘輪	價格請洽詢	6960-14 數量

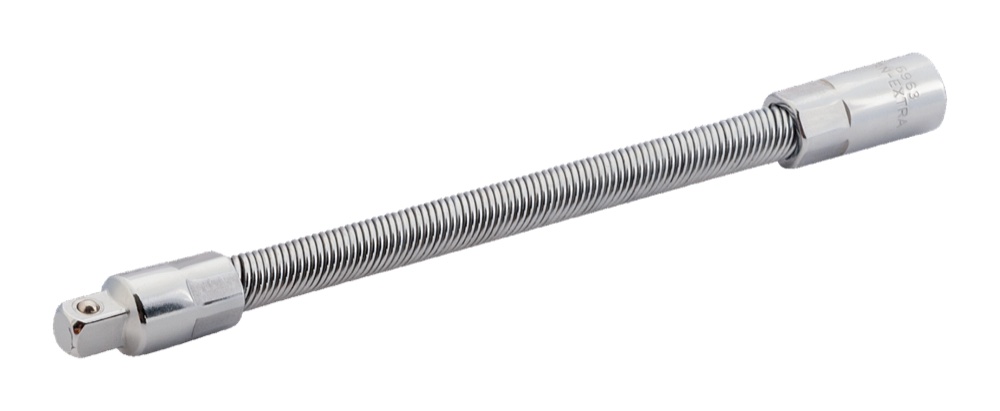

6960F-6	1/4 FLEXIBLE EXTENSION 150MM	BAHCO	套筒與棘輪	價格請洽詢	6960F-6 數量
SB6960	EXTENSION	BAHCO	套筒與棘輪	價格請洽詢	SB6960 數量
6962-W	WOBBLE EXTENSION 1/4"-150MM	BAHCO	套筒與棘輪	價格請洽詢	6962-W 數量

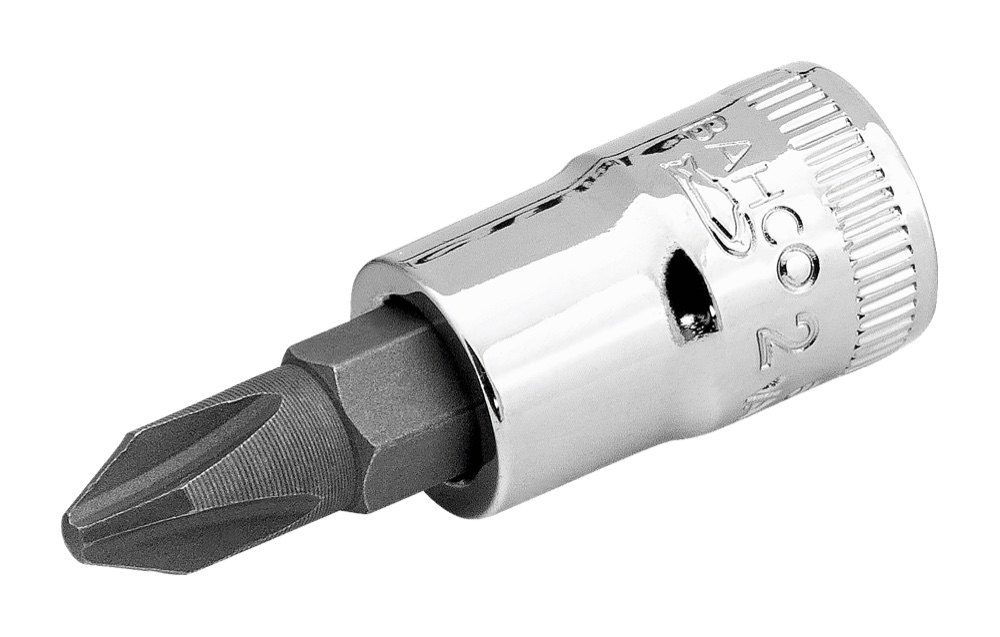

6709PH-4	1/4 BIT SOCKET PH4	BAHCO	套筒與棘輪	價格請洽詢	6709PH-4 數量

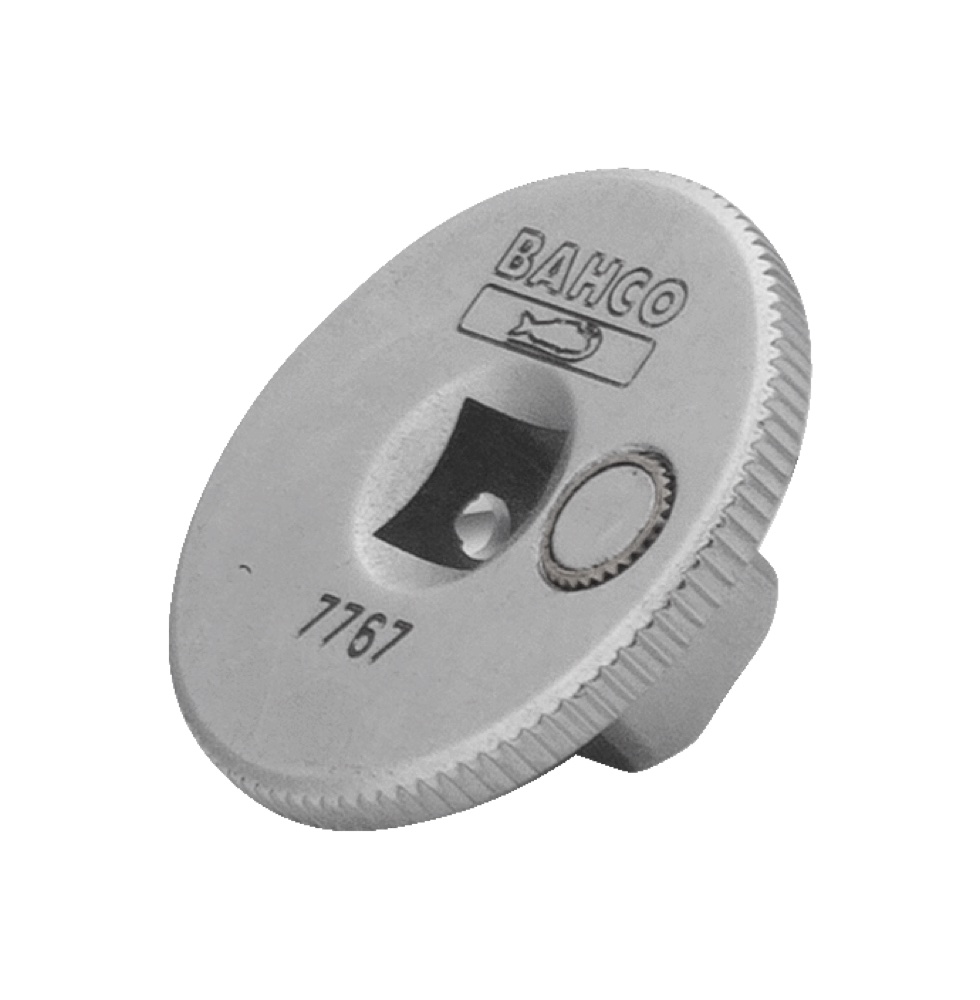

7767	FLAT ADAPTOR 1/4"-3/8"	BAHCO	套筒與棘輪	價格請洽詢	7767 數量
