Name: SOCKET 1/2
Brand: BAHCO
SKU: 7800SM-23

正在載入商品資料…

7800SM-23

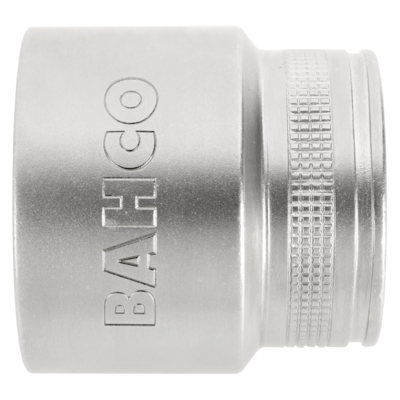

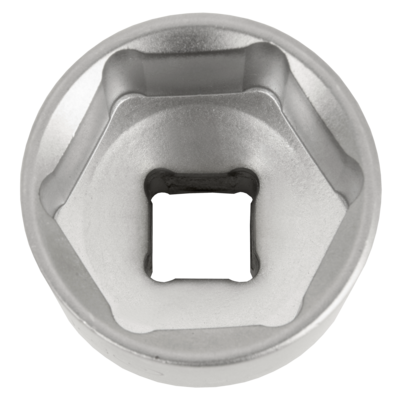

1/2" Square Drive Socket with 23 mm Hex Profile and High Polished Finish

SOCKET 1/2

BAHCO

品牌: BAHCO
料號: 7800SM-23
主題分類: 套筒與棘輪
Size: 23 mm
Length L: 38 mm
Socket width: 31.6 mm
Female square drive width: 26 mm
Depth ball-bearing: 14 mm
Weight, g: 120 g

原廠資料與完整規格 ↓

產品特色PRODUCT DETAILS · 原廠資料

Knurled shank for finger turning of free running fasteners
Not suitable for machine operation or power tools
Highly polished finish
High-performance alloy steel
Less wear of the fastener thanks to Dynamic-Drive™ profile
Maximum load distribution and torque from the additional flank area
SB: retail packed on a plastic info card
Standards: ISO 2725/1174 and DIN 3124/3120

尺寸示意圖DIMENSIONS · 原廠線稿

型號	Size	Length L	Socket width	Female square drive width	Depth ball-bearing	Weight, g
7800SM-23	23 mm	38 mm	31.6 mm	26 mm	14 mm	120 g

詳細規格SPECIFICATIONS

規格項目	規格值
商品編號	7800SM-23
商品名稱	SOCKET 1/2
品牌	BAHCO
主題分類	套筒與棘輪
交期	請洽詢，由客服依採購需求確認
零售價（含稅）	請洽詢

同系列規格比較VARIANTS · 原廠型錄（共 30 款）

型號	Size	Length L	Socket width	Female square drive width	Depth ball-bearing	Weight, g	價格
7800SM-10	10 mm	38 mm	15.4 mm	22 mm	5.8 mm	51 g	價格請洽詢
7800SM-11	11 mm	38 mm	16.6 mm	22 mm	7.1 mm	51 g	價格請洽詢
7800SM-12	12 mm	38 mm	17.9 mm	22 mm	8.9 mm	60 g	價格請洽詢
7800SM-13	13 mm	38 mm	19.1 mm	22 mm	9.7 mm	53 g	價格請洽詢
7800SM-14	14 mm	38 mm	20.4 mm	22 mm	10.2 mm	60 g	價格請洽詢
7800SM-15	15 mm	38 mm	21.6 mm	22 mm	9.1 mm	64 g	價格請洽詢
7800SM-16	16 mm	38 mm	22.9 mm	22 mm	11.4 mm	70 g	價格請洽詢
7800SM-17	17 mm	38 mm	24.1 mm	23 mm	12.2 mm	72 g	價格請洽詢
7800SM-18	18 mm	38 mm	25.4 mm	23.5 mm	13.5 mm	76 g	價格請洽詢
7800SM-19	19 mm	38 mm	26.6 mm	24 mm	13.5 mm	80 g	價格請洽詢
7800SM-20	20 mm	40 mm	27.9 mm	25 mm	13.5 mm	100 g	價格請洽詢
7800SM-21	21 mm	37 mm	29.1 mm	25 mm	13.5 mm	90 g	價格請洽詢
7800SM-22	22 mm	39 mm	30.4 mm	25.5 mm	13.7 mm	109 g	價格請洽詢
7800SM-23本商品	23 mm	38 mm	31.6 mm	26 mm	14 mm	120 g	價格請洽詢
7800SM-24	24 mm	41 mm	32.9 mm	26.5 mm	15.3 mm	121 g	價格請洽詢
7800SM-25	25 mm	42 mm	34.1 mm	27 mm	15.3 mm	124 g	價格請洽詢
7800SM-26	26 mm	46 mm	35.4 mm	28 mm	15.5 mm	150 g	價格請洽詢
7800SM-27	27 mm	44 mm	36.6 mm	29 mm	17.1 mm	173 g	價格請洽詢
7800SM-28	28 mm	45 mm	37.9 mm	29 mm	16.8 mm	200 g	價格請洽詢
7800SM-29	29 mm	44 mm	39.2 mm	29 mm	17.3 mm	210 g	價格請洽詢
7800SM-30	30 mm	43 mm	40.4 mm	29.5 mm	18.5 mm	240 g	價格請洽詢
7800SM-32	32 mm	47 mm	42.9 mm	30.5 mm	19.3 mm	227 g	價格請洽詢
7800SM-33	33 mm	49 mm	44 mm	36 mm	20.3 mm	250 g	價格請洽詢
7800SM-34	34 mm	50 mm	45.5 mm	42 mm	20.3 mm	350 g	價格請洽詢
7800SM-36	36 mm	50 mm	45 mm	40 mm	20.3 mm	340 g	價格請洽詢
7800SM-8	8 mm	38 mm	12.9 mm	22 mm	5.2 mm	50 g	價格請洽詢
7800SM-9	9 mm	38 mm	14.2 mm	22 mm	5.2 mm	42 g	價格請洽詢
SB7800SM-10	10 mm	38 mm	14 mm	22 mm	5.8 mm	60 g	價格請洽詢
SB7800SM-11	11 mm	32 mm	16.6 mm	22 mm	7.1 mm	60 g	價格請洽詢
SB7800SM-12	12 mm	36.5 mm	17.9 mm	22 mm	8.9 mm	70 g	價格請洽詢

相關商品RELATED · 同主題：套筒與棘輪

填入所需數量後，一次加入詢價清單。交期與專案價格請洽詢。

商品型錄與採購數量
料號	品名	品牌	主題分類	價格	數量

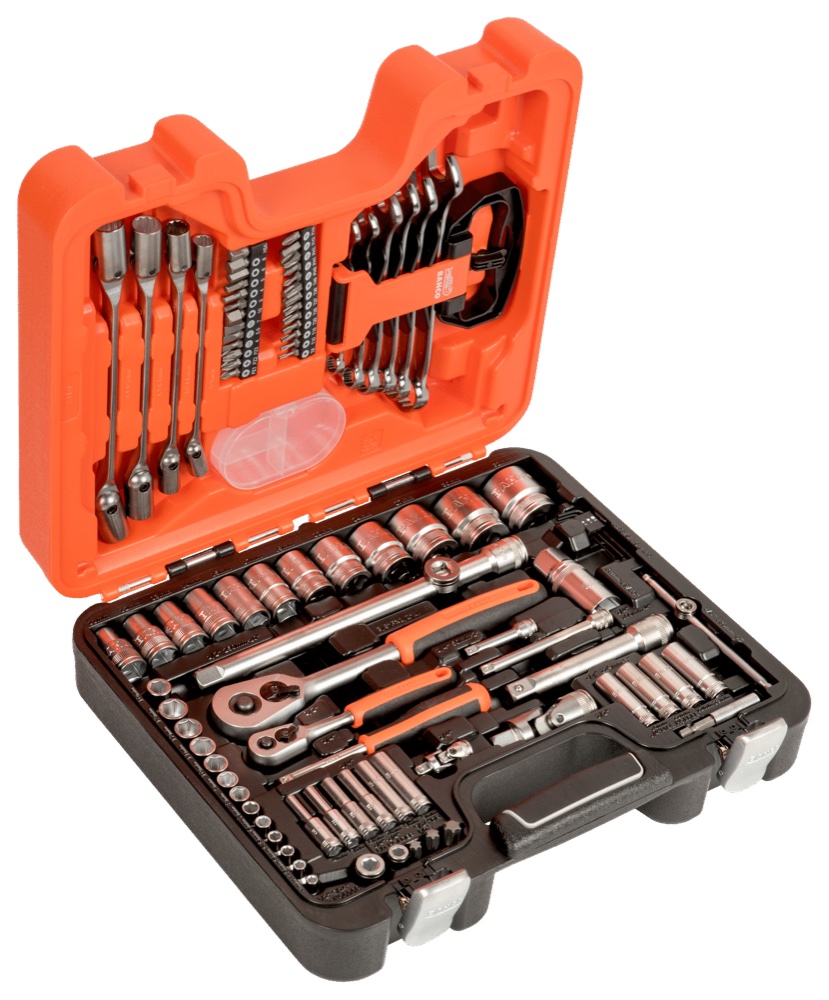

S910	SOCKET SET 1/4" & 1/2"	BAHCO	套筒與棘輪	價格請洽詢	S910 數量

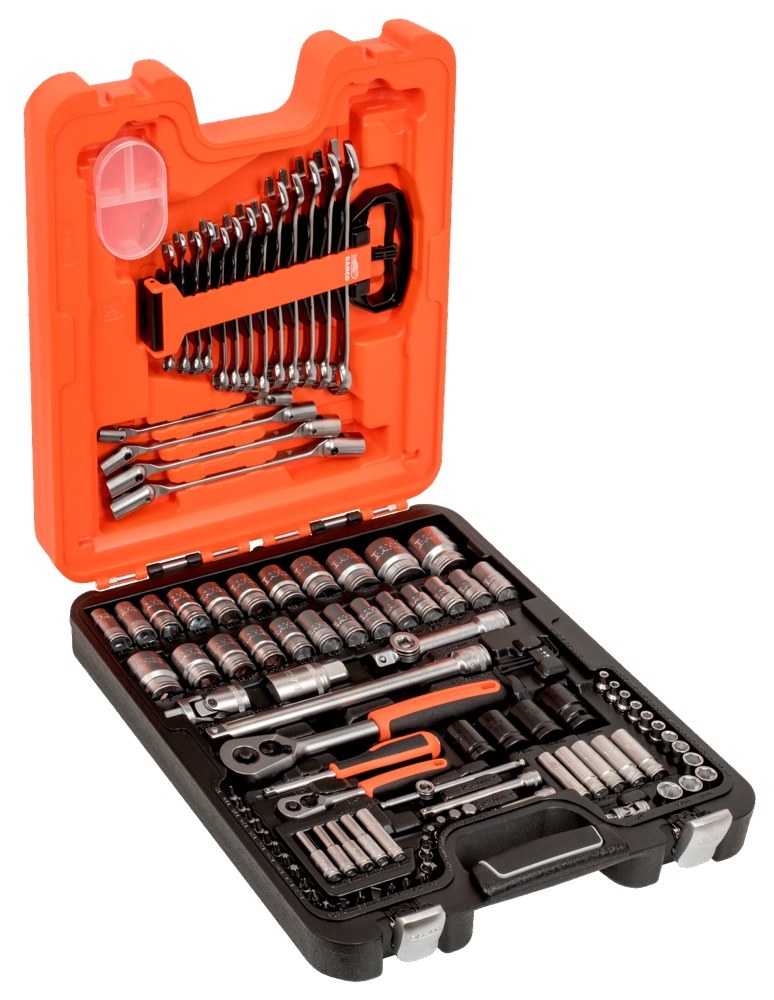

S106	SOCKET SET	BAHCO	套筒與棘輪	價格請洽詢	S106 數量

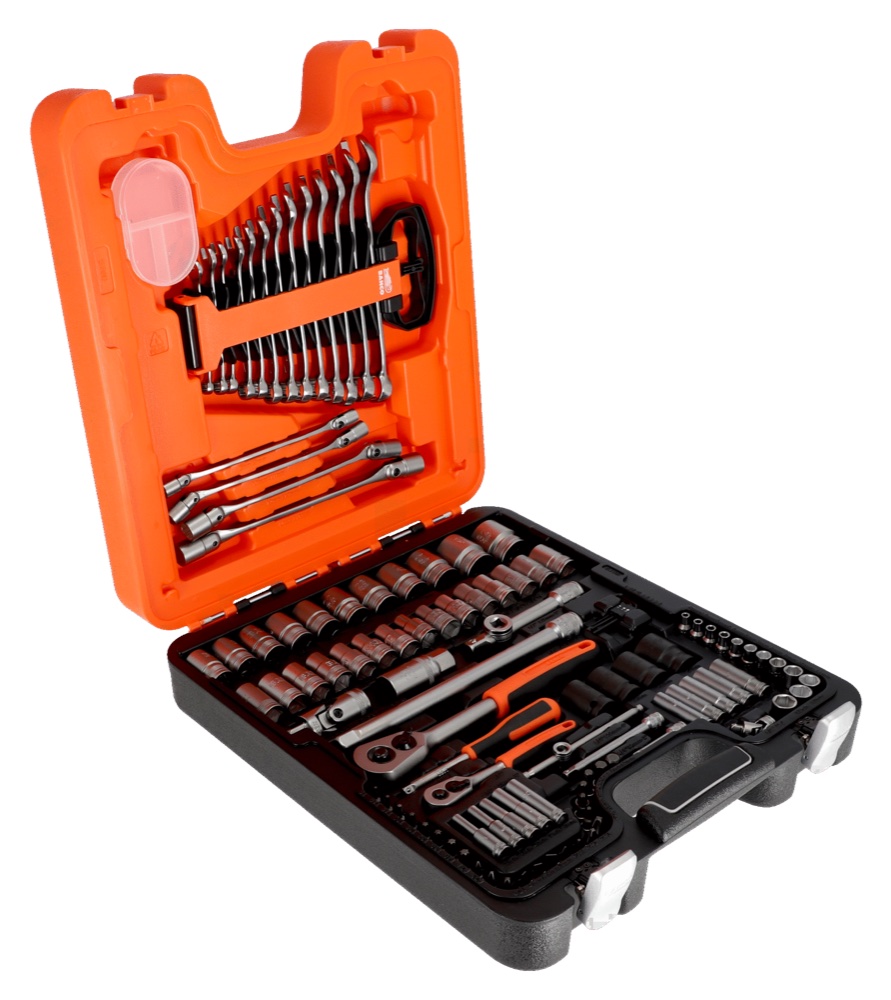

S108	SOCKET SET 1/4" & 1/2"	BAHCO	套筒與棘輪	價格請洽詢	S108 數量

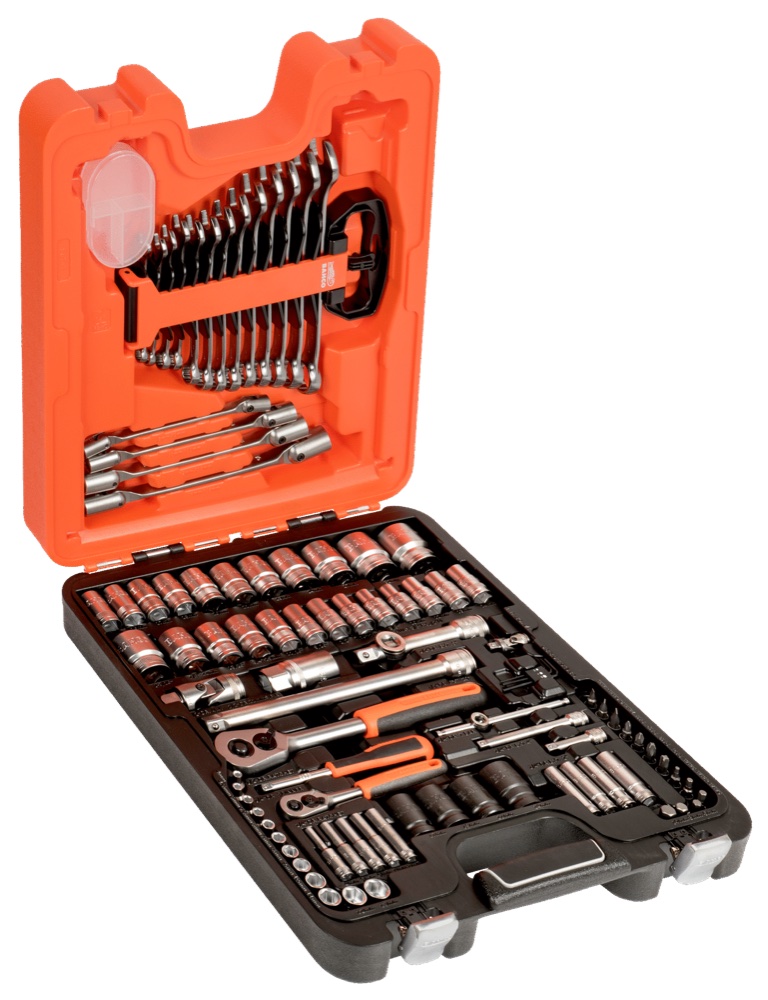

S87+7	SOCKET SET 1/4" & 1/2"	BAHCO	套筒與棘輪	價格請洽詢	S87+7 數量

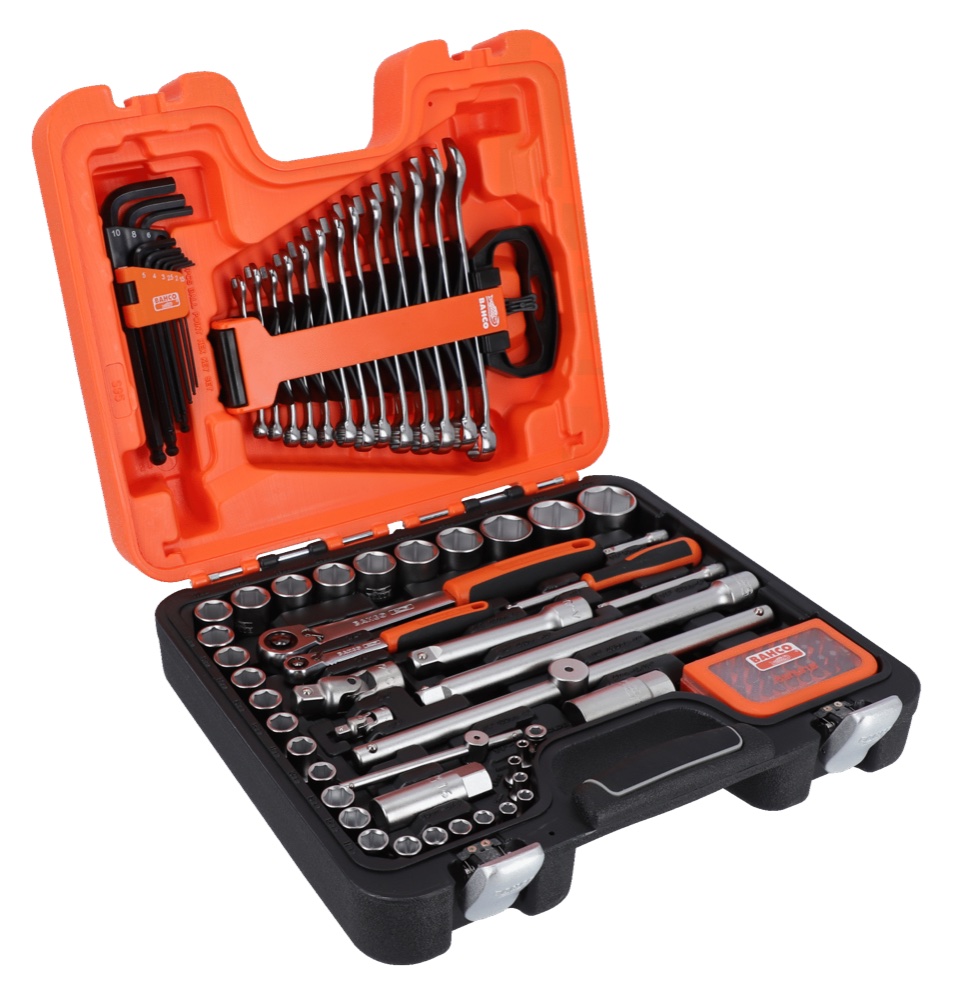

S95	SOCKET SET 1/4" & 1/2"	BAHCO	套筒與棘輪	價格請洽詢	S95 數量

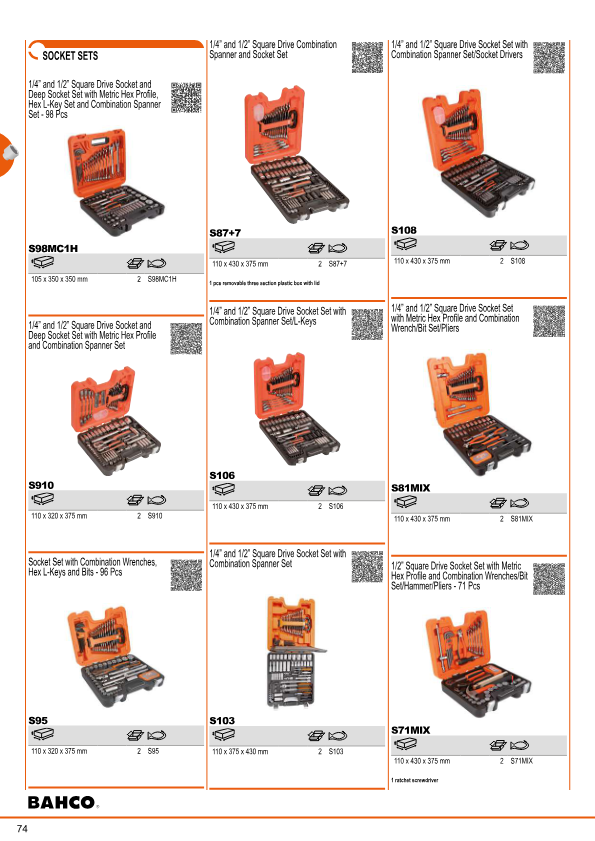

S103	SOCKET SET 1/4+1/2 103PCS	BAHCO	套筒與棘輪	價格請洽詢	S103 數量
7800SM-10	SOCKET 1/2	BAHCO	套筒與棘輪	價格請洽詢	7800SM-10 數量

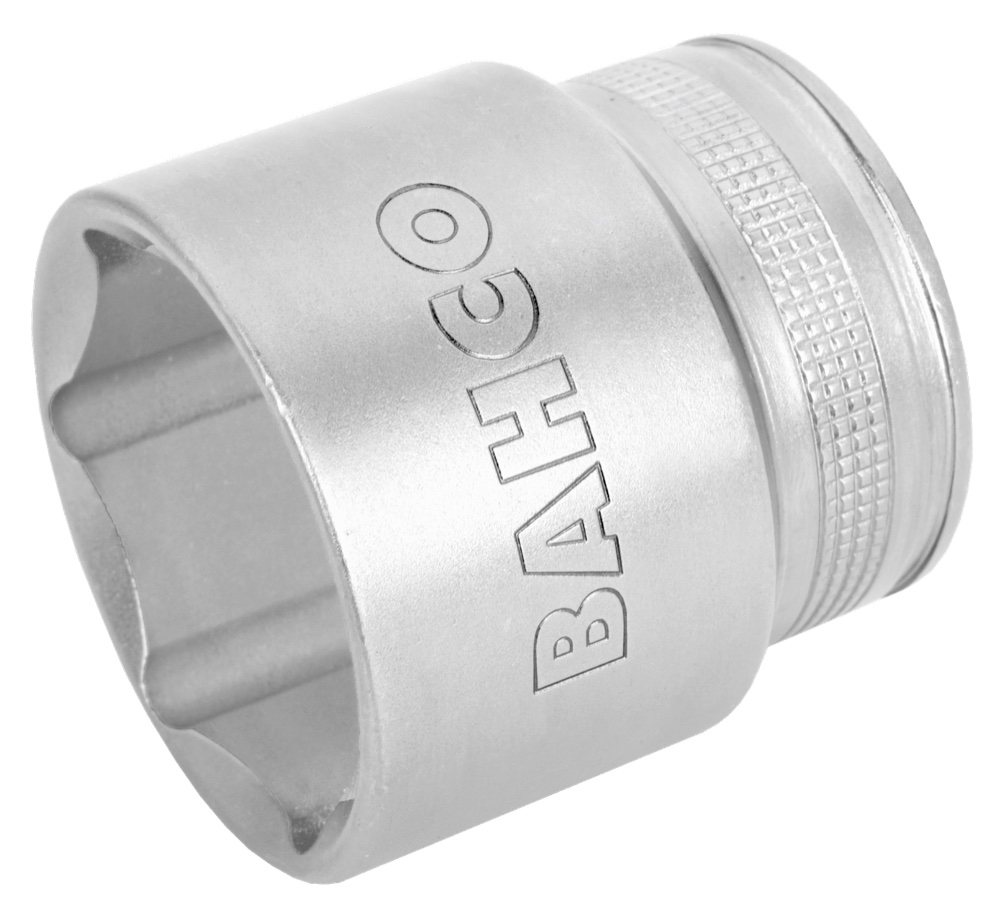

7800SM-19	SOCKET 1/2	BAHCO	套筒與棘輪	價格請洽詢	7800SM-19 數量
