9505-3400

Hand Torque Multiplier with Straight and Offset Reaction Arms 680 N.m-3400 N.m

Name: TORQUE MULTIPLIER 3400 NM 5:1
Brand: BAHCO
SKU: 9505-3400
Price: 112190.00 TWD
Availability: InStock

TORQUE MULTIPLIER 3400 NM 5:1

BAHCO

^NT$112,190含稅 · 原廠正品

可訂購· 原廠調貨 · 交期洽 LINE

數量

原廠正品台灣官方授權代理

新北現貨倉48 小時台灣出貨

LINE 技術諮詢平日 09:00–18:00

產品特色PRODUCT DETAILS · 原廠資料

Reaction plate with sliding point allows chosing the best reaction point for the job at hand
The further from the bolt to fasten, the better
Use always with torque wrench (CW and CCW) to avoid exceeding the maximum torque of the multiplier
Accuracy ±4%

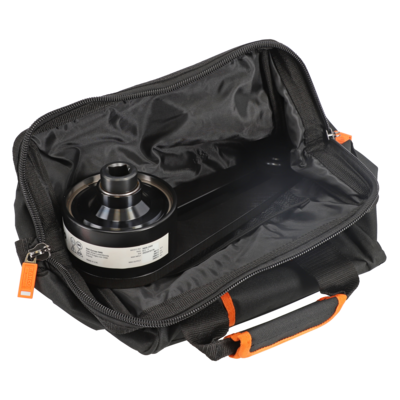

Supplied in portable fabric bag
Made in UK

型號	Max Torque OUT	Female square drive	Multiplication ratio	Max Torque IN	Square	Head width	Height head	Total length	Distance screw	Distance screw	Weight (Kg)
9505-3400	3400 N·m	3/4 in	5.2:1	653 N·m	1 in	119 mm	106 mm	355 mm	86 mm	263 mm	7.200 kg
