K7760C-1
3/8" Square Drive Extension with Phosphate Finish 75 mm

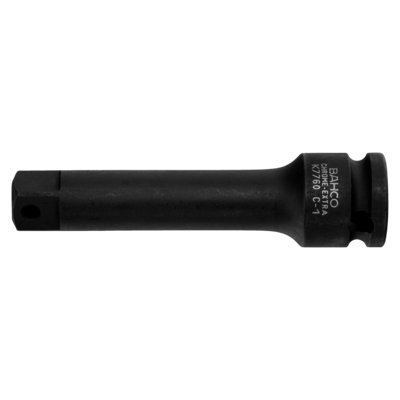

POWER SOCKET EXTENSION 3/8
BAHCO
NT$630含稅 · 原廠正品
可訂購· 原廠調貨 · 交期洽 LINE
數量
原廠正品台灣官方授權代理
新北現貨倉48 小時台灣出貨
LINE 技術諮詢平日 09:00–18:00
QUICKBUYTOOLS · TAIWAN AUTHORIZED
產品特色PRODUCT DETAILS · 原廠資料
- Phosphate finish
- High-performance alloy steel
- With through-hole
- To be used with machines
- For maximum safety use clamping springs
- D2 = outside diameter of the female end
- Drive standard: DIN 3121-G 10, ISO 1174

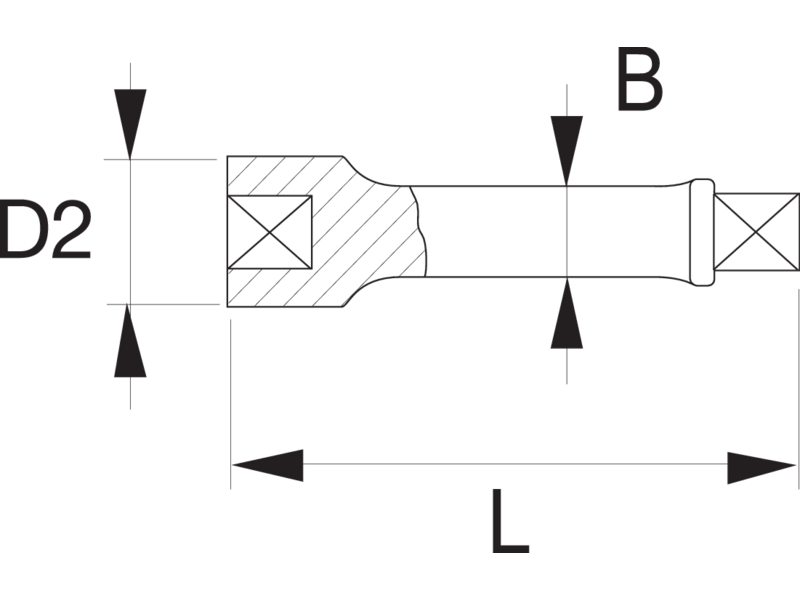

尺寸示意圖DIMENSIONS · 原廠線稿
| 型號 | Male square drive | Female square drive | Length | Diameter | Outside diameter of female end | Clamping spring | Weight, g |
|---|---|---|---|---|---|---|---|
| K7760C-1 | 3/8" | 3/8" | 75 mm | 12.4 mm | 20 mm | K560F-2 | 80 g |
詳細規格SPECIFICATIONS
| 規格項目 | 規格值 |
|---|---|
| 商品編號 | K7760C-1 |
| 商品名稱 | POWER SOCKET EXTENSION 3/8 |
| 品牌 | BAHCO |
| 主題分類 | 電動工具配件 |
| 狀態 | 可訂購 · 原廠調貨 · 交期洽 LINE |
| 零售價（含稅） | NT$630 |
同系列規格比較VARIANTS · 原廠型錄（共 2 款）
| 型號 | Male square drive | Female square drive | Length | Diameter | Outside diameter of female end | Clamping spring | Weight, g | 價格 |
|---|---|---|---|---|---|---|---|---|
| K7760C-1本商品 | 3/8" | 3/8" | 75 mm | 12.4 mm | 20 mm | K560F-2 | 80 g | NT$630 |
| K7760C-2 | 3/8" | 3/8" | 150 mm | 12.4 mm | 20 mm | K560F-2 | 148 g | NT$730 |
