Name: 1/2 POWER SOCKET DEEP 3/8 CLIP
Brand: BAHCO
SKU: SBK7806Z-3/8

正在載入商品資料…

SBK7806Z-3/8

1/2" Square Drive Deep Impact Sockets with 3/8" Hex Profile and Phosphate Finish - Retail Pack

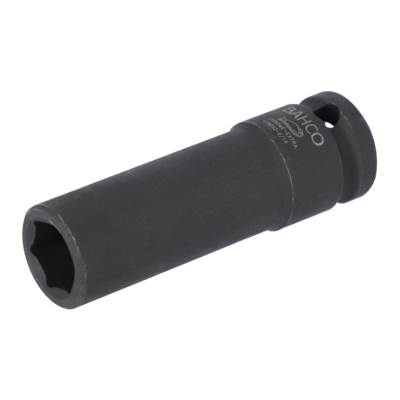

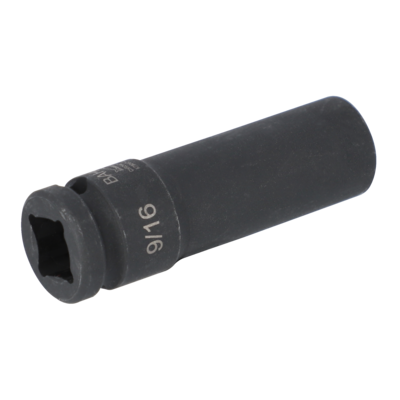

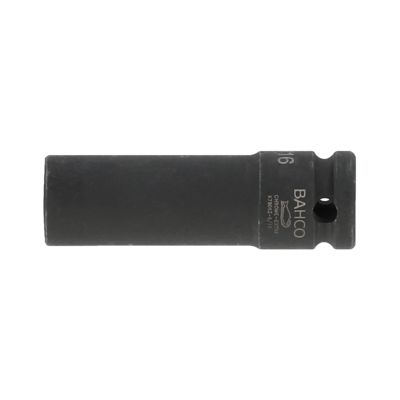

1/2 POWER SOCKET DEEP 3/8 CLIP

BAHCO

To be used with machines
For maximum safety use clamping springs K560F-4 and K560F-5, see table
Phosphate finish
High-performance Chrome Molybdenum steel
Dynamic-Drive™ Profile to protect nuts, screws and tools from unnecessary wear and damage
T = depth of female hexagon
Drive standard: DIN 3121-G 12.5 ISO 1174

型號	Size	Length L	Socket width	Male square drive width	Depth of female hexagon	Clamping spring	Weight, g
SBK7806Z-3/8	3/8 in	78 mm	17 mm	25 mm	12 mm	K560F-4	160 g

型號	Size	Length L	Socket width	Male square drive width	Depth of female hexagon	Clamping spring	Weight, g	價格
SBK7806Z-1	1 in	80 mm	35.8 mm	30 mm	27 mm	K560F-5	330 g	價格請洽詢
SBK7806Z-1.1/16	1 1/16 in	78 mm	37.8 mm	30 mm	27 mm	K560F-5	410 g	價格請洽詢
SBK7806Z-1.1/2	1 1/2 in	78 mm	49.8 mm	30 mm	32 mm	K560F-5	570 g	價格請洽詢
SBK7806Z-1.1/4	1 1/4 in	78 mm	43.8 mm	30 mm	32 mm	K560F-5	430 g	價格請洽詢
SBK7806Z-1.1/8	1 1/8 in	78 mm	39.8 mm	30 mm	27 mm	K560F-5	410 g	價格請洽詢
SBK7806Z-1.3/8	1 3/8 in	78 mm	47.8 mm	30 mm	32 mm	K560F-5	480 g	價格請洽詢
SBK7806Z-1.5/16	1 5/16 in	78 mm	44.8 mm	30 mm	32 mm	K560F-5	430 g	價格請洽詢
SBK7806Z-1.7/16	1 7/16 in	78 mm	49.8 mm	30 mm	32 mm	K560F-5	570 g	價格請洽詢
SBK7806Z-1/2	1/2 in	78 mm	20.5 mm	25 mm	14 mm	K560F-4	180 g	價格請洽詢
SBK7806Z-13/16	13/16 in	78 mm	30 mm	30 mm	22 mm	K560F-5	250 g	價格請洽詢
SBK7806Z-3/4	3/4 in	78 mm	28 mm	30 mm	20 mm	K560F-5	225 g	價格請洽詢
SBK7806Z-3/8本商品	3/8 in	78 mm	17 mm	25 mm	12 mm	K560F-4	160 g	價格請洽詢
SBK7806Z-5/8	5/8 in	78 mm	24.5 mm	30 mm	16 mm	K560F-5	220 g	價格請洽詢
SBK7806Z-7/16	7/16 in	78 mm	18.5 mm	25 mm	13 mm	K560F-4	160 g	價格請洽詢
SBK7806Z-7/8	7/8 in	78 mm	31.8 mm	30 mm	22 mm	K560F-5	320 g	價格請洽詢
SBK7806Z-9/16	9/16 in	78 mm	23 mm	25 mm	14 mm	K560F-4	180 g	價格請洽詢
