Name: POWER SOCKET 1.1/2
Brand: BAHCO
SKU: K9801Z-1.1/2

正在載入商品資料…

K9801Z-1.1/2

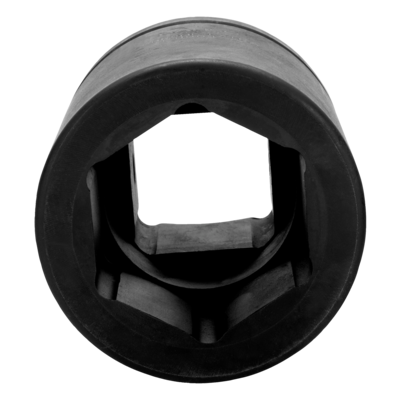

1-1/2" Square Drive Impact Socket with 1-1/2" Hex Profile and Phosphate Finish

POWER SOCKET 1.1/2

BAHCO

品牌: BAHCO
料號: K9801Z-1.1/2
主題分類: 電動工具配件
Hexagon size: 1 1/2 in
Length L: 57 mm
Socket width: 43 mm
Male square drive width: 56 mm
Clamping spring: K560F-8
Weight, g: 510 g

原廠資料與完整規格 ↓

產品特色PRODUCT DETAILS · 原廠資料

To be used with machines
For maximum safety use clamping springs
Phosphate finish
High-performance alloy steel
Dynamic-Drive™ Profile to protect nuts, screws and tools from unnecessary wear and damage
Manufactured on demand
Drive standard: DIN 3121-H 40, ISO 1174
Standards: DIN 3129, ISO 2725

尺寸示意圖DIMENSIONS · 原廠線稿

型號	Hexagon size	Length L	Socket width	Male square drive width	Clamping spring	Weight, g
K9801Z-1.1/2	1 1/2 in	57 mm	43 mm	56 mm	K560F-8	510 g

詳細規格SPECIFICATIONS

規格項目	規格值
商品編號	K9801Z-1.1/2
商品名稱	POWER SOCKET 1.1/2
品牌	BAHCO
主題分類	電動工具配件
交期	請洽詢，由客服依採購需求確認
零售價（含稅）	請洽詢

同系列規格比較VARIANTS · 原廠型錄（共 30 款）

型號	Hexagon size	Length L	Socket width	Male square drive width	Clamping spring	Weight, g	價格
K9801Z-1.1/2本商品	1 1/2 in	57 mm	43 mm	56 mm	K560F-8	510 g	價格請洽詢
K9801Z-1.11/16	1 11/16 in	82.6 mm	73.2 mm	82.6 mm	K560F-8	1980 g	價格請洽詢
K9801Z-1.13/16	1 13/16 in	88 mm	76.8 mm	82.6 mm	K560F-8	2220 g	價格請洽詢
K9801Z-1.15/16	1 15/16 in	95 mm	80.6 mm	82.6 mm	K560F-8	2610 g	價格請洽詢
K9801Z-1.3/4	1 3/4 in	85.7 mm	75.1 mm	82.6 mm	K560F-8	2250 g	價格請洽詢
K9801Z-1.3/8	1 3/8 in	69.9 mm	63.8 mm	82.6 mm	K560F-8	2060 g	價格請洽詢
K9801Z-1.5/8	1 5/8 in	90 mm	71.2 mm	82.6 mm	K560F-8	2140 g	價格請洽詢
K9801Z-1.7/16	1 7/16 in	76.2 mm	65.7 mm	82.6 mm	K560F-8	2030 g	價格請洽詢
K9801Z-1.7/8	1 7/8 in	88.9 mm	78.7 mm	80 mm	K560F-8	2290 g	價格請洽詢
K9801Z-1.9/16	1 9/16 in	79.4 mm	69.3 mm	82.6 mm	K560F-8	1970 g	價格請洽詢
K9801Z-2	2 in	88.9 mm	82.6 mm	82.6 mm	K560F-8	2800 g	價格請洽詢
K9801Z-2.1/16	2 1/16 in	92.1 mm	84.8 mm	82.6 mm	K560F-8	2480 g	價格請洽詢
K9801Z-2.1/2	2 1/2 in	109 mm	97.5 mm	82.6 mm	K560F-8	3630 g	價格請洽詢
K9801Z-2.1/4	2 1/4 in	95.3 mm	90 mm	82.6 mm	K560F-8	3240 g	價格請洽詢
K9801Z-2.1/8	2 1/8 in	95.3 mm	86.2 mm	82.6 mm	K560F-8	2680 g	價格請洽詢
K9801Z-2.11/16	2 11/16 in	108.0 mm	103.1 mm	82.6 mm	K560F-8	3820 g	價格請洽詢
K9801Z-2.13/16	2 13/16 in	111.1 mm	106.8 mm	82.6 mm	K560F-8	4420 g	價格請洽詢
K9801Z-2.15/16	2 15/16 in	114.3 mm	110.6 mm	82.6 mm	K560F-8	4580 g	價格請洽詢
K9801Z-2.3/16	2 3/16 in	95.3 mm	88.1 mm	82.6 mm	K560F-8	2630 g	價格請洽詢
K9801Z-2.3/4	2 3/4 in	112 mm	105 mm	82.6 mm	K560F-8	4240 g	價格請洽詢
K9801Z-2.3/8	2 3/8 in	100 mm	93.7 mm	82.6 mm	K560F-8	3160 g	價格請洽詢
K9801Z-2.5/16	2 5/16 in	100 mm	91.8 mm	82.6 mm	K560F-8	3100 g	價格請洽詢
K9801Z-2.5/8	2 5/8 in	110 mm	100 mm	82.6 mm	K560F-8	3710 g	價格請洽詢
K9801Z-2.7/16	2 7/16 in	109 mm	95.6 mm	82.6 mm	K560F-8	3460 g	價格請洽詢
K9801Z-2.9/16	2 9/16 in	104.8 mm	99.3 mm	82.6 mm	K560F-8	3430 g	價格請洽詢
K9801Z-3	3 in	114.3 mm	112.5 mm	82.6 mm	K560F-8	4660 g	價格請洽詢
K9801Z-3.1/16	3 1/16 in	117.5 mm	114.3 mm	82.6 mm	K560F-8	5310 g	價格請洽詢
K9801Z-3.1/2	3 1/2 in	127 mm	127.5 mm	82.6 mm	K560F-8	6640 g	價格請洽詢
K9801Z-3.1/8	3 1/8 in	117.5 mm	116.2 mm	82.6 mm	K560F-8	5720 g	價格請洽詢
K9801Z-3.11/16	3 11/16 in	130.2 mm	133.1 mm	82.6 mm	K560F-8	6950 g	價格請洽詢
