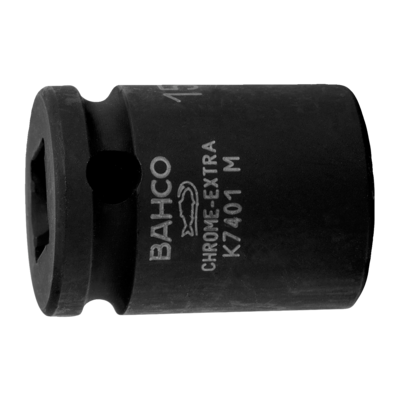

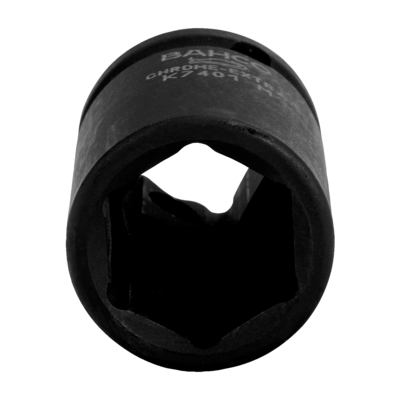

Name: IMPACT SOCKET 3/8
Brand: BAHCO
SKU: K7401M-15

正在載入商品資料…

K7401M-15

3/8" Square Drive Impact Socket with 15 mm Hex Profile and Phosphate Finish

IMPACT SOCKET 3/8

BAHCO

To be used with machines
For maximum safety use clamping springs
Phosphate finish
High-performance alloy steel
Dynamic-Drive™ Profile to protect nuts, screws and tools from unnecessary wear and damage
Drive standard: DIN 3121-F ISO 1174
Standards: DIN 3129, ISO 2725

型號	Size	Length L	Socket width	Width square drive	Depth ball-bearing	Clamping spring	Weight, g
K7401M-15	15 mm	28 mm	21.2 mm	22 mm	11 mm	K560F-3	55 g

型號	Size	Length L	Socket width	Width square drive	Depth ball-bearing	Clamping spring	Weight, g	價格
K7401M-11	11 mm	27 mm	16.7 mm	19 mm	9 mm	K560F-2	46 g	價格請洽詢
K7401M-12	12 mm	27 mm	18 mm	19 mm	9 mm	K560F-2	46 g	價格請洽詢
K7401M-13	13 mm	27 mm	19.7 mm	22 mm	9 mm	K560F-3	52 g	價格請洽詢
K7401M-14	14 mm	30 mm	20.5 mm	22 mm	9 mm	K560F-3	55 g	價格請洽詢
K7401M-15本商品	15 mm	28 mm	21.2 mm	22 mm	11 mm	K560F-3	55 g	價格請洽詢
K7401M-16	16 mm	28 mm	22.8 mm	22 mm	11 mm	K560F-3	62 g	價格請洽詢
K7401M-17	17 mm	29 mm	24.5 mm	22 mm	11 mm	K560F-3	65 g	價格請洽詢
K7401M-18	18 mm	29 mm	25.3 mm	22 mm	11 mm	K560F-3	70 g	價格請洽詢
K7401M-19	19 mm	30 mm	26.8 mm	22 mm	11 mm	K560F-3	71 g	價格請洽詢
K7401M-20	20 mm	31 mm	28.5 mm	22 mm	12 mm	K560F-3	72 g	價格請洽詢
K7401M-21	21 mm	31 mm	29.3 mm	22 mm	13 mm	K560F-3	75 g	價格請洽詢
K7401M-22	22 mm	33 mm	30 mm	22 mm	13 mm	K560F-3	89 g	價格請洽詢
K7401M-24	24 mm	34 mm	33.2 mm	22 mm	13 mm	K560F-3	91 g	價格請洽詢
K7401M-7	7 mm	26 mm	12.5 mm	19 mm	8 mm	K560F-2	40 g	價格請洽詢
K7401M-8	8 mm	26 mm	12.9 mm	19 mm	8 mm	K560F-2	44 g	價格請洽詢
K7401M-9	9 mm	26 mm	14.5 mm	19 mm	8 mm	K560F-2	46 g	價格請洽詢

填入所需數量後，一次加入詢價清單。交期與專案價格請洽詢。

已填 0 項 · 共 0 件
