2678V-180

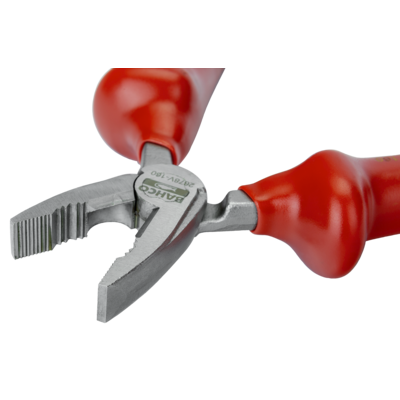

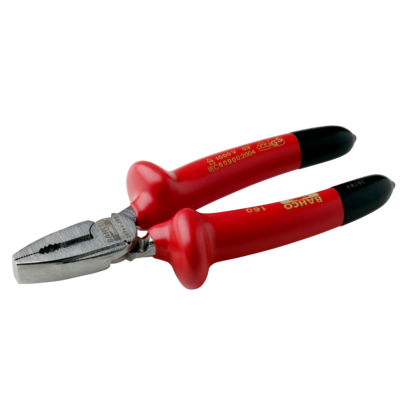

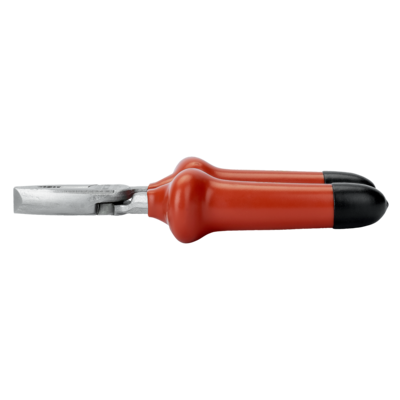

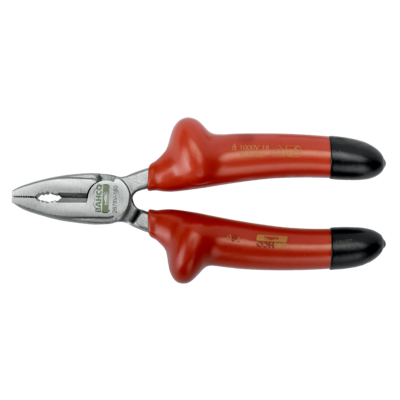

VDE Insulated Combination Pliers 180 mm
COMB.PLIER 1000V 180 MM
BAHCO
NT$2,630含稅 · 原廠正品
可訂購· 原廠調貨 · 交期洽 LINE
數量
原廠正品台灣官方授權代理
新北現貨倉48 小時台灣出貨
LINE 技術諮詢平日 09:00–18:00
QUICKBUYTOOLS · TAIWAN AUTHORIZED
產品特色PRODUCT DETAILS · 原廠資料
- Dip-coated insulation
- 3-layer safety colour code insulation
- For working on live equipment up to 1000 V according to IEC 60900
- High performance alloy steel
- Chrome plated and anti-corrosion treated finish
- Standards: ISO 5749
- 3 Multi-layer coating with different colours indicating safety, danger or high danger. Plus a 4th one in black to further protect handle edges
- This provides protection as well as creating a visual warning system
- If the outer insulation layer gets damaged, the lighter colour underneath will become visible and warn the user
- Each and every tool is tested to 10.000V for 10 seconds at the end of the manufacturing cycle
尺寸示意圖DIMENSIONS · 原廠線稿
| 型號 | Total Length | Head Length | Head Width (mm) | Head Thickness (mm) | Edge Opening | Jaw thickness | Cutting Length | Cutting Capacity Soft Wire (mm) | Weight, g |
|---|---|---|---|---|---|---|---|---|---|
| 2678V-180 | 180 mm | 36 mm | 26 mm | 13 mm | 8 mm | 11.5 mm | 13 mm | 3.0 mm | 348 g |
詳細規格SPECIFICATIONS
| 規格項目 | 規格值 |
|---|---|
| 商品編號 | 2678V-180 |
| 商品名稱 | COMB.PLIER 1000V 180 MM |
| 品牌 | BAHCO |
| 主題分類 | 工具收納與工具組 |
| 狀態 | 可訂購 · 原廠調貨 · 交期洽 LINE |
| 零售價（含稅） | NT$2,630 |
