Name: DIAG.CUTTING PLIER 1000V 200MM
Brand: BAHCO
SKU: 2171V-200

正在載入商品資料…

2171V-200

VDE Insulated Side Cutting Pliers 200 mm

DIAG.CUTTING PLIER 1000V 200MM

BAHCO

Dip-coated insulation
3-layer safety colour code insulation
For working on live equipment up to 1000 V according to IEC 60900
Induction hardened cutting edges
High performance alloy steel
Chrome plated and anti-corrosion treated finish
Standards: ISO 5749
3 Multi-layer coating with different colours indicating safety, danger or high danger. Plus a 4th one in black to further protect handle edges
This provides protection as well as creating a visual warning system
If the outer insulation layer gets damaged, the lighter colour underneath will become visible and warn the user
Each and every tool is tested to 10.000V for 10 seconds at the end of the manufacturing cycle

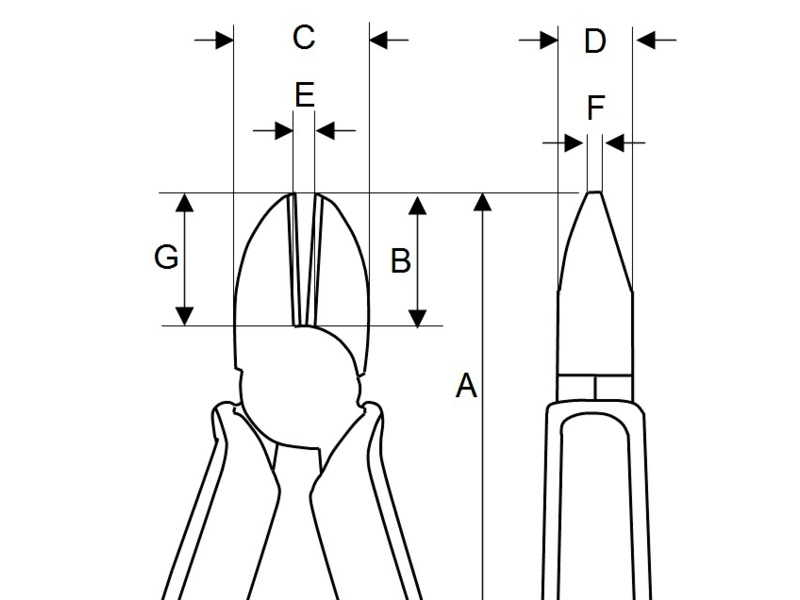

型號	Total Length	Head Length	Head Width (mm)	Head Thickness (mm)	Edge Opening	Jaw thickness	Cutting Length	Cutting Capacity Soft Wire (mm)	Cutting Capacity Fe+ (mm)	Weight, g
2171V-200	200 mm	22 mm	25 mm	12 mm	2.5 mm	2 mm	22 mm	4.0 mm	3.0 mm	350 g

型號	Total Length	Head Length	Head Width (mm)	Head Thickness (mm)	Edge Opening	Jaw thickness	Cutting Length	價格
2171V-160	160 mm	20 mm	25 mm	12 mm	3 mm	2 mm	20 mm	價格請洽詢
2171V-180	180 mm	22 mm	25 mm	12 mm	2.5 mm	2 mm	22 mm	價格請洽詢
2171V-200本商品	200 mm	22 mm	25 mm	12 mm	2.5 mm	2 mm	22 mm	價格請洽詢
