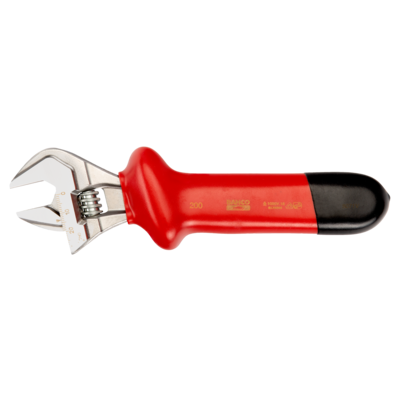

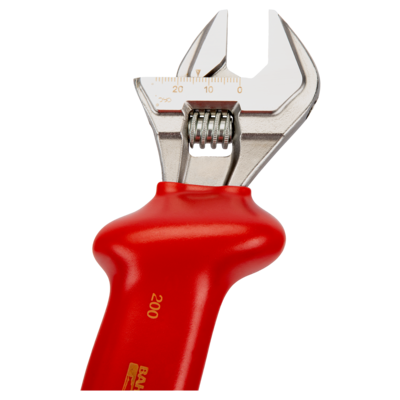

ADJUSTABLE WRENCH 1000V 6IN

8070V

Insulated Thumb Screw Adjustable Wrenches

ADJUSTABLE WRENCH 1000V 6IN

BAHCO

品牌: BAHCO
料號: 8070V
主題分類: 絕緣工具
Length A: 165 mm
Length (in): 6 in
Opening: 20 mm
Jaw thickness: 5.5 mm
Head Thickness (mm): 12 mm
Jaw height: 19 mm
Weight, g: 175 g

原廠資料與完整規格 ↓

產品特色PRODUCT DETAILS · 原廠資料

Dip-coated insulation
3-layer safety colour code insulation
For working on live equipment up to 1000 V according to IEC 60900
Chrome plated and anti-corrosion treated finish
Made of high performance alloy steel
Standards: ISO 6787
3 Multi-layer coating with different colours indicating safety, danger or high danger. Plus a 4th one in black to further protect handle edges
This provides protection as well as creating a visual warning system
If the outer insulation layer gets damaged, the lighter colour underneath will become visible and warn the user
Each and every tool is tested to 10.000V for 10 seconds at the end of the manufacturing cycle

尺寸示意圖DIMENSIONS · 原廠線稿

8070V 尺寸示意圖

型號	Length A	Length (in)	Opening	Jaw thickness	Head Thickness (mm)	Jaw height	Weight, g
8070V	165 mm	6 in	20 mm	5.5 mm	12 mm	19 mm	175 g

詳細規格SPECIFICATIONS

規格項目	規格值
商品編號	8070V
商品名稱	ADJUSTABLE WRENCH 1000V 6IN
品牌	BAHCO
主題分類	絕緣工具
交期	請洽詢，由客服依採購需求確認
零售價（含稅）	請洽詢
